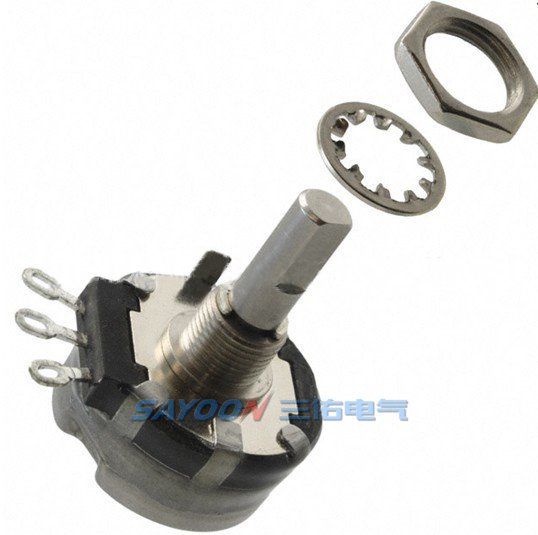

Резистивный дроссель Sayoon P270

Модель SAYOON: P270
Resistance range, Ohms: 0-5KΩ
Standard resistance tolerance: ±10%
Residual resistance: 6Ω max
Input voltage,maximum: 500Vdc not to exceed power rating
Power rating,watts: 2W at 70℃
Dielectric strength: 1000VAC,1 minute
insulation resistance,minimum: 50M ohms at 500Vdc
Sliding noise: 100mV max
actual electrical travel,nominal: 45°
Total mechanical travel: 312°±5°
Static stop strength,maximum: 200 oz-in
rotational torque: Dust proof:1.0.oz-in.max. sealed:1.0 to 2.5 oz-in
panel nut tightening torque: 25 lb-in
Rotational load life: 1 Million CYCLES（10%ΔR）
